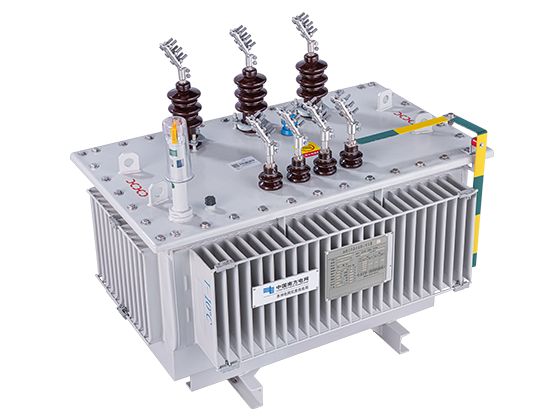

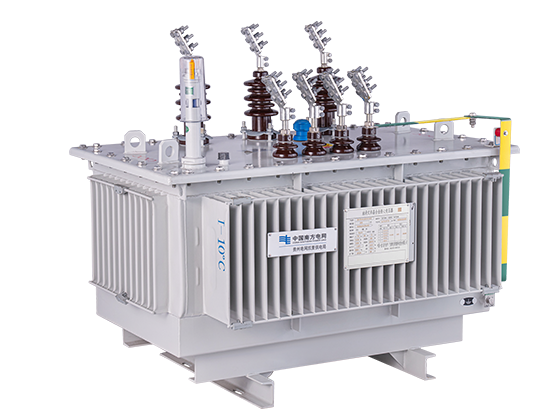

OIL-IMMERSED AMORPHOUS ALLOY CORE DISTRIBUTION TRANSFORMER
1.Suitable for indoor or outdoor applications. 2.The production adopts new magnetic core material with ultra-low loss characteristics, significant economic benefits and fast return on investment. 3. No-load loss reduced by 70%, as compared with ordinary silicon steel sheet, and no-load current reduced by 50%. 4.Widely used in power network, commercial and residential buildings, industrial and mining enterprises.
Product Features
Compact structure, beautiful appearance.
The iron core structure is made of amorphous alloy material, excellent energy saving performance and remarkable economic benefits.
High-quality insulation oil (vegetable oil mineral oil), and the Vegetable oil is environmentally friendly and has a high ignition point.
Hermetically sealed structure design, maintenance free and no leakage during the whole life cycle.
Technical Parameter
| Technical specifications | |||
| Voltage level (kV) | ≤15 | ||
| Rated power (kVA) | ≤630 | ||
| Frequency (Hz) | 50/60 | ||
| Insulation grade | A | ||
| Maximum ambient temperature (℃) | 55 | ||
| Altitude (m) | ≤5000 | ||
| Type of cooling | ONAN/ONAF,KNAN/KNAF | ||
| Winding material | Copper/Aluminum | ||
| Voltage regulation mode | Off circuit | ||
| Installation | Pole mounted(≤630kVA)/Pad mounted | ||
| Structure type | Fully sealed/Conservator | ||
| Insulating medium | Natural/Synthetic ester/ Mineral oil | ||
| Standards | EN60076/IEC60076/ANSIC57.12/IEEE-C57.12,etc. | ||
| Declaration: This product is a custom class, special requirements can be customised according to customer requirements. | |||
