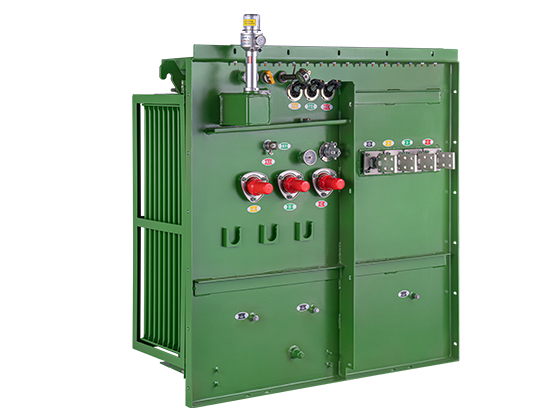

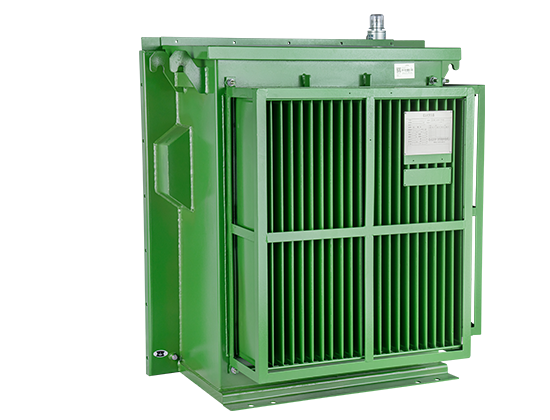

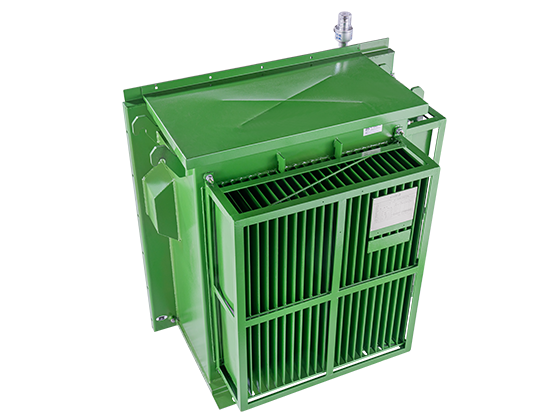

OIL-IMMERSED 3P PAD MOUNTED DISTRIBUTION TRANSFORMER
1·Suitable for indoor-outdoor applications. 2.ONAN cooling. 3. Widely used in residential areas, commercial centers, factories, enterprises, hospital, schools, etc.
Product Features
Low noise, high efficiency.
Low no-load loss.
Long life cycle, no leakage.
Hermetically sealed structure fuel tank, maintenance-free.
Beautiful appearance, small footprint, easy to install.
Technical Parameter
| Technical Specifications | |||||
| Voltage level (kV) | ≤33 | ||||
| Rated power (kVA) | ≤2500 | ||||
| Frequency (Hz) | 50/60 | ||||
| Insulation grade | A | ||||
| Maximum ambient temperature (℃) | 55 | ||||
| Altitude (m) | ≤5000 | ||||
| Type of cooling | ONAN/ONAF,KNAN/KNAF | ||||
| Winding material | Copper/Aluminum | ||||
| Voltage regulation mode | Off circuit | ||||
| Installation | Pole mounted(≤500kVA)/Pad mounted | ||||
| Structure type | Fully sealed/Conservator | ||||
| Insulating medium | Natural/Synthetic ester/Mineral oil | ||||
| Standards | EN60076/IEC60076/ANSIC57.12/IEEE-C57.12,etc. | ||||
| Declaration: This product is a custom class, special requirements can be customised according to customer requirements. | |||||
